HEENA ENGINEERING CO. PVT. LTD. | Bottom Traction Unit - HE

Model	Load [In kg]	Speed [In m/sec]	Ratio	Sheave [In mm]	Rope [In mm] [PITCH 19M.M.]	Ropping	Power [ KW ]	Power [ HP ]	Pole	Travel / Height [ Mtrs. ]
HE - 12	2000	1.00	60/2	610	7 X 13	1:1	26.5	35	6P	100
HE - 12	2000	1.50	60/2	610	7 X 13	1:1	30	40	4P	100
HE - 12	2500	0.75	60/1	610	7 X 13	1:1	26.5	35	4P	100
HE - 12	2500	1.00	60/2	610	7 X 13	1:1	30	40	6P	100
HE - 12	2500	1.50	60/2	610	7 X 13	1:1	37.5	50	4P	80
HE - 12	3000	0.50	60/1	610	7 X 13	1:1	30	40	6P	80
HE - 12	3000	1.00	60/2	710	7 X 13	2:1	26.5	35	4P	80
HE - 12	4000	0.50	60/2	610	7 X 13	2:1	26.5	35	6P	50
HE - 12	4500	0.30	60/1	710	7 X 13	2:1	26.5	35	6P	50
HE - 12	5000	0.30	60/1	710	7 X 13	2:1	30	40	6P	50

• All dimension are in mm • Subject to change without notice !

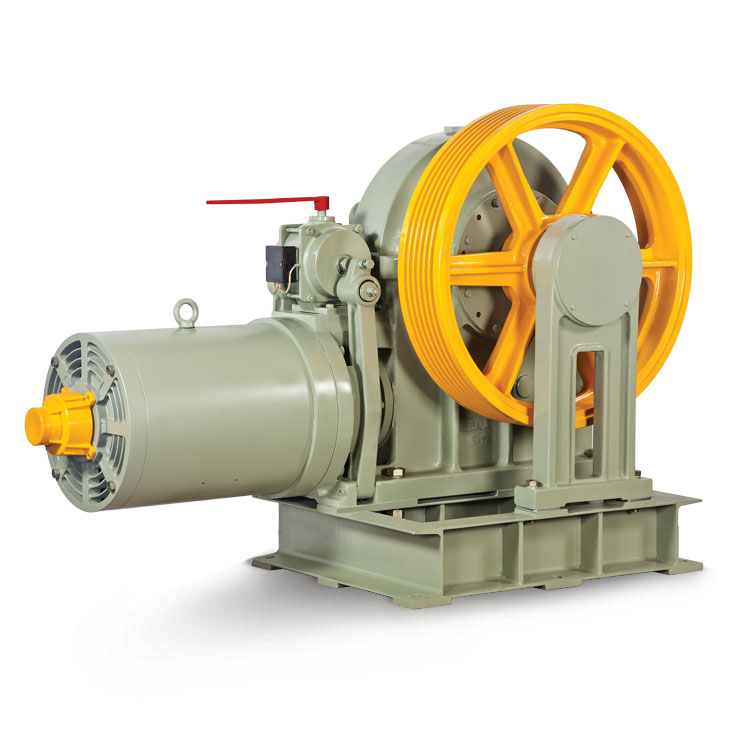

Model
HE - 12 MONO
