HEENA ENGINEERING CO. PVT. LTD. | PM Gearless M/c.

Ropping: 2:1

Type	Load [In kg]	Car Speed [In m/sec]	Sheave [In mm]	Rope [In mm] [Pitch 12mm]	Power [ KW ]	Rated Current [ A ]	Rated Tourque [ Nm.]	Frequency [ Hz ]	Speed [ RPM ]	Travel Height [ Mtrs ]
HGL-1000-26P-065	1768	0.65	320	10 X 8Ø	7.0	20.0	840	12.9	78	80
HGL-1000-26P-100	1768	1.00	320	10 X 8Ø	10.5	28.0	840	20.0	119	80
HGL-1000-26P-125	1768	1.25	320	10 X 8Ø	13.25	35.0	840	24.0	149	80
HGL-1000-26P-150	1768	1.50	320	10 X 8Ø	16.0	42.0	840	29.8	180	80
HGL-1000-26P-175	1768	1.75	320	10 X 8Ø	18.5	50.0	840	34.8	209	80
HGL-1000-26P-200	1768	2.00	320	10 X 8Ø	21.0	55.0	840	39.8	239	80
HGL-1000-30P-065	2040	0.65	320	10 X 8Ø	8.0	22.0	960	12.9	78	80
HGL-1000-30P-100	2040	1.00	320	10 X 8Ø	12.0	32.0	960	20.0	119	80
HGL-1000-30P-125	2040	1.25	320	10 X 8Ø	15.0	39.0	960	24.0	149	80
HGL-1000-30P-150	2040	1.50	320	10 X 8Ø	18.0	48.0	960	29.8	180	80
HGL-1000-30P-175	2040	1.75	320	10 X 8Ø	21.0	55.0	960	34.8	209	80
HGL-1000-30P-200	2040	2.00	320	10 X 8Ø	24.0	63.0	960	39.8	239	80

• All dimension are in mm • Subject to change without notice !

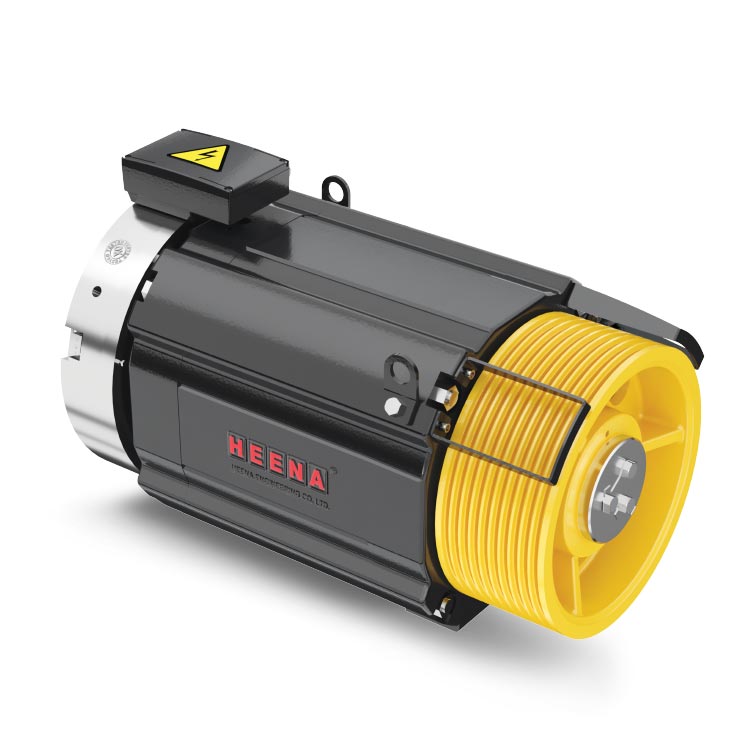

Model
HGL - 1000
