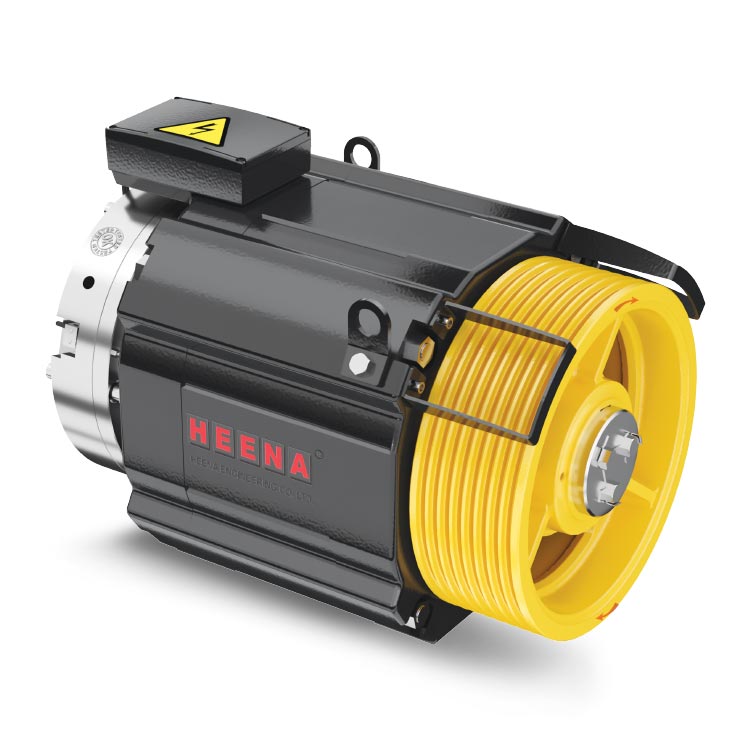

Max. Static Load3500 Kg
BrakeDC 110V, 2.2 A
Brake TypeDisc
Pole20
Volts380 V
RatingIP 41
Weight260 Kg
| Type | Load [In kg] |
Car Speed [In m/sec] |
Sheave [In mm] |
Rope [In mm] [Pitch 12mm] |
Power [ KW ] |
Rated Current [ A ] |
Rated Tourque [ Nm.] |
Frequency [ Hz ] |
Speed [ RPM ] |
Travel Height [ Mtrs ] |
|---|---|---|---|---|---|---|---|---|---|---|
| HGL-800-13P-150 | 884 | 1.50 | 320 | 8 X 8Ø | 7.6 | 20.0 | 415 | 29.8 | 180 | 80 |
| HGL-800-13P-175 | 884 | 1.75 | 320 | 8 X 8Ø | 9.0 | 22.0 | 415 | 34.8 | 209 | 80 |
| HGL-800-13P-200 | 884 | 2.00 | 320 | 8 X 8Ø | 10.2 | 27.0 | 415 | 39.8 | 239 | 80 |
| HGL-800-16P-100 | 1088 | 1.00 | 320 | 8 X 8Ø | 6.5 | 17.0 | 520 | 20.0 | 119 | 60 |
| HGL-800-16P-100 | 1088 | 1.00 | 400 | 5 X 10Ø (Pitch 15mm) |
6.5 | 17.0 | 650 | 15.9 | 95 | 60 |
| HGL-800-16P-125 | 1088 | 1.25 | 320 | 8 X 8Ø | 8.0 | 24.0 | 510 | 24.8 | 149 | 60 |
| HGL-800-16P-150 | 1088 | 1.50 | 320 | 8 X 8Ø | 9.5 | 25.0 | 510 | 29.8 | 180 | 60 |
| HGL-800-20P-065 | 1360 | 0.65 | 320 | 8 X 8Ø | 5.2 | 15.0 | 640 | 12.9 | 78 | 60 |
| HGL-800-20P-100 | 1360 | 1.00 | 320 | 8 X 8Ø | 8.0 | 24.0 | 640 | 20.0 | 119 | 60 |
