HEENA ENGINEERING CO. PVT. LTD. | Upper Traction Unit

Model
HL Unit 5,6,7,8 & 9

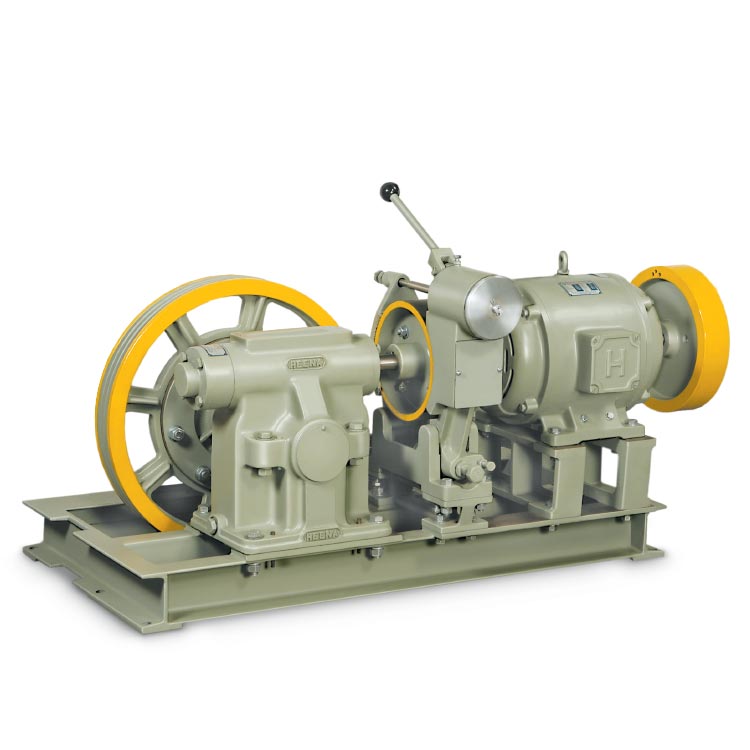

HEENA Lift an Upper Traction Unit Machine are developed from worm reduction gear units. These units have been designed where in worm reduction gearbox - brake and electric drive are aligned for silence, smoothness and safety in a lift machine. Backless adjustment facility is provided which makes machine life longer.
HL - 5 / 6 / 7 / 8 / 9 are available in [0.32, 0.50,0.65 & 1.00 m/sec]

Model	Center [ Inches ]	Load [ In kg ]	Speed [ In m/sec ]	Ratio	Sheave [ mm ]	Rope [ mm ]	Ropping	Power [ HP ]	Pole
HL-5	5	750	0.32	40/1	530	3 X 13	2:1	5	6
HL-5	5	408	0.65	40/1	530	3 X 13	1:1	5	6
HL-5	5	408	1.00	40/1	530	3 X 13	1:1	6	4
HL-6	6	1000	0.32	40/1	530	4 X 13	2:1	7.5	6
HL-6	6	544	0.65	40/1	530	3 X 13	1:1	7.5	6
HL-6	6	544	1.00	40/1	530	3 X 13	1:1	7.5	4
HL-7	7	1500	0.32	50/1	610	4 X 13	2:1	10	6
HL-7	7	680	0.65	50/1	610	4 X 13	1:1	10	6
HL-7	7	680	1.00	53/2	530	4 X 13	1:1	12	6
HL-8	8	2000	0.32	50/1	610	4 X 13	2:1	12	6
HL-8	8	1020	0.65	50/1	610	4 X 13	1:1	12	6
HL-8	8	1020	1.00	53/2	530	4 X 13	1:1	15	6
HL-9	9	2500	0.30	50/1	610	4 X 13	2:1	15	6
HL-9	9	3000	0.30	50/1	610	5 X 13	2:1	20	6
HL-9	9	1400	0.60	50/1	610	4 X 13	1:1	15	6
HL-9	9	1750	0.60	50/1	610	5 X 13	1:1	20	6
HL-9	9	1400	1.00	60/2	610	5 X 13	1:1	20	6
HL-9	9	1750	1.00	60/2	610	5 X 13	1:1	25	6

• All dimension are in mm • Subject to change without notice !
