HEENA ENGINEERING CO. PVT. LTD. | PM Gearless M/c.

Ropping: 2:1

Type	Load [In kg]	Car Speed [In m/sec]	Sheave [In mm]	Rope [In mm] [Pitch 12mm]	Power [ KW ]	Rated Current [ A ]	Rated Tourque [ Nm.]	Frequency [ Hz ]	Speed [ RPM ]	Travel Height [ Mtrs ]
HGL-1100-37P-065	2500	0.65	320	12 X 8Ø	10.0	27.0	1190	12.9	78	80
HGL-1100-37P-100	2500	1.00	320	12 X 8Ø	15.0	39.0	1190	20.0	119	80
HGL-1100-37P-125	2500	1.25	320	12 X 8Ø	18.8	50.0	1190	24.8	149	80
HGL-1100-37P-150	2500	1.50	320	12 X 8Ø	22.5	58.0	1190	29.8	180	80
HGL-1100-37P-200	2500	2.00	320	12 X 8Ø	30.0	65.0	1190	39.8	239	80
HGL-1100-44P-065	3000	0.65	320	12 X 8Ø	12.0	32.0	1440	12.9	78	80
HGL-1100-44P-100	3000	1.00	320	12 X 8Ø	18.0	48.0	1440	20.0	119	80
HGL-1100-44P-125	3000	1.25	320	12 X 8Ø	22.5	58.0	1440	24.8	149	80
HGL-1100-44P-150	3000	1.50	320	12 X 8Ø	27.0	60.0	1440	29.8	180	80

• All dimension are in mm • Subject to change without notice !

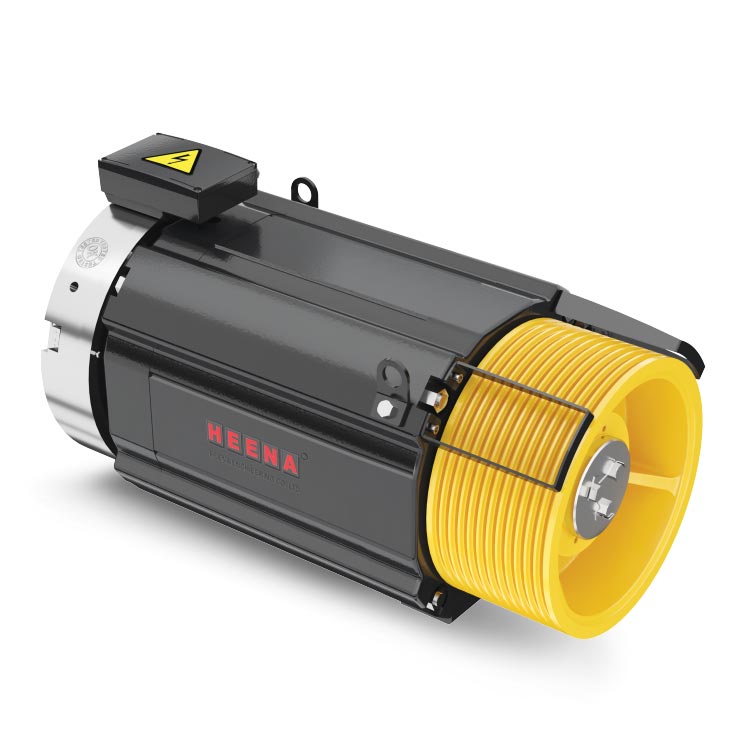

Model
HGL - 1100
