HEENA ENGINEERING CO. PVT. LTD. | Bottom Traction Unit - HE

Model	Load [In kg]	Speed [In m/sec]	Ratio	Sheave [In mm]	Rope [In mm] [PITCH 19M.M.]	Ropping	Power [ KW ]	Power [ HP ]	Pole	Travel / Height [ Mtrs. ]
HE - 9	1020	1.00	60/2	610	5 X 13	1:1	15	20	6P	100
HE - 9	1020	1.50	60/2	610	6 X 13	1:1	17	22.5	4P	100
HE - 9	1360	1.00	60/2	610	5 X 13	1:1	17	22.5	6P	80
HE - 9	1360	1.50	60/2	610	6 X 13	1:1	18.75	25	4P	80
HE - 9	1500	0.65	50/1	610	5 X 13	1:1	15	22.5	6P	80
HE - 9	1500	1.00	60/2	610	6 X 13	1:1	18.75	25	6P	80
HE - 9	1500	1.50	60/2	610	6 X 13	1:1	22.5	30	4P	60
HE - 9	1700	1.00	60/2	610	6 X 13	1:1	18.75	25	6P	50
HE - 9	1700	1.50	60/2	610	6 X 13	1:1	22.5	30	4P	50
HE - 9	1800	1.00	60/2	710	6 X 13	2:1	17	22.5	4P	30
HE - 9	3000	0.30	50/1	610	5 X 13	2:1	15	20	6P	50
HE - 9	3000	0.50	60/2	610	6 X 13	2:1	17	22.5	6P	40
HE - 9	3500	0.30	50/1	610	6 X 13	2:1	17	22.5	6P	30

• All dimension are in mm • Subject to change without notice !

Model

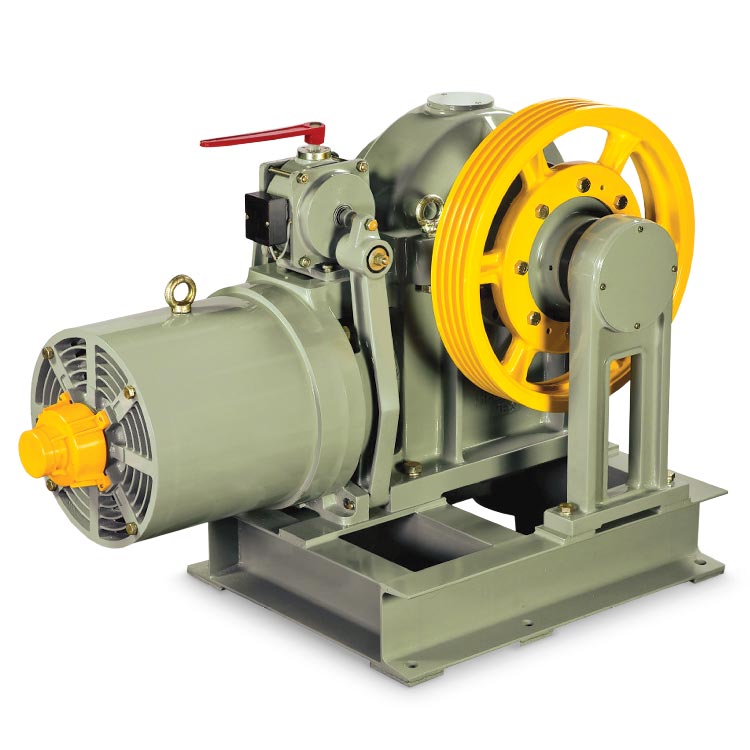

HE - 9 MONO
