Suitable for
0.25, 0.32, 0.50, 0.65, 0.75 & 1.00 m/sec
Suitable for
1.00 & 1.50 m/sec

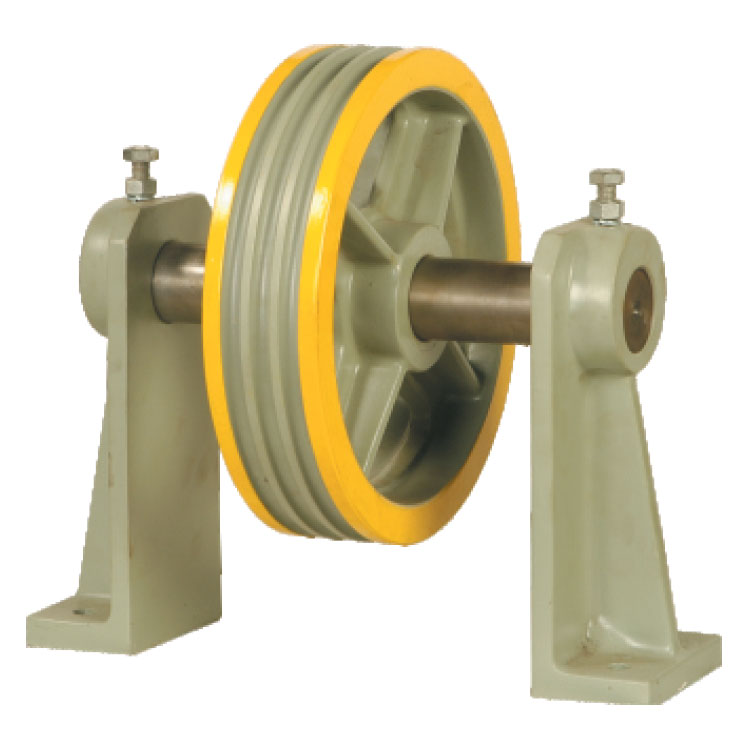

| Sheave Dia [ mm ] |
Grove & Rope [ mm ] |
Grove & Rope [ mm ] |
Grove & Rope [ mm ] |
Grove & Rope [ mm ] |
Grove & Rope [ mm ] |
Grove & Rope [ mm ] |
|---|---|---|---|---|---|---|
| 205 | 3 X 8 | 4 X 8 | ||||
| 240 | 4 X 8 | 5 X 8 | ||||
| 305 | 3 X 13 | 4 X 13 | 5 X 13 | 6 X 13 | ||
| 320 | 4 X 8 | 5 X 8 | 6 X 8 | 7 X 8 | 8 X 8, 10 X 8, 12 X 8 | |
| 410 | 3 X 13 | 4 X 13 | 5 X 13 | 6 X 13 | 7 X 13 | 9 X 13 |
| 460 | 3 X 13 | 4 X 13 | 5 X 13 | 6 X 13 | ||
| 510 | 3 X 13 | 4 X 13 | 5 X 13 | 6 X 13 | 7 X 13 | |
| 560 | 3 X 13 | 4 X 13 | 5 X 13 | 6 X 13 | 7 X 13 | 8 X 13 |
| 710 | 4 X 13 | 5 X 13 | 6 X 13 | 7 X 13 |
